Harley Davidson Torque Specs Chart [Bolts & Fasteners Guide]

Maintaining your Harley Davidson means paying close attention to every bolt and fastener. Whether you’re performing routine maintenance, replacing parts, or customizing your ride, knowing the correct torque specifications is essential.

That’s why we’ve created this Harley Davidson Torque Specs Chart — a detailed guide to ensure every bolt is tightened to factory standards.

Why Do You Need a Harley Davidson Torque Specs Chart?

Every Harley motorcycle is engineered with precision. When you tighten bolts too loosely, you risk parts vibrating loose. Overtightening, on the other hand, can strip threads, damage components, or cause bolts to snap.

Here’s why torque specs matter:

• Safety: Prevents critical parts from loosening while riding.
• Longevity: Protects threads, gaskets, and seals.
• Performance: Ensures proper clamping force for balanced handling.
• Reliability: Helps avoid costly mechanical failures.

By following the correct torque specs, you keep your Harley running smoothly and securely.

Harley Davidson Torque Specs Chart (By Component)

⚡ Tip: Always use a calibrated torque wrench and follow Harley’s official service manual for your model. The chart below gives general specs commonly used across Touring, Softail, Dyna, and Sportster models.

Engine & Primary Torque Specs

Component	Torque Spec (ft-lbs)	Notes
Spark Plugs	10–14	Hand tighten first, then torque

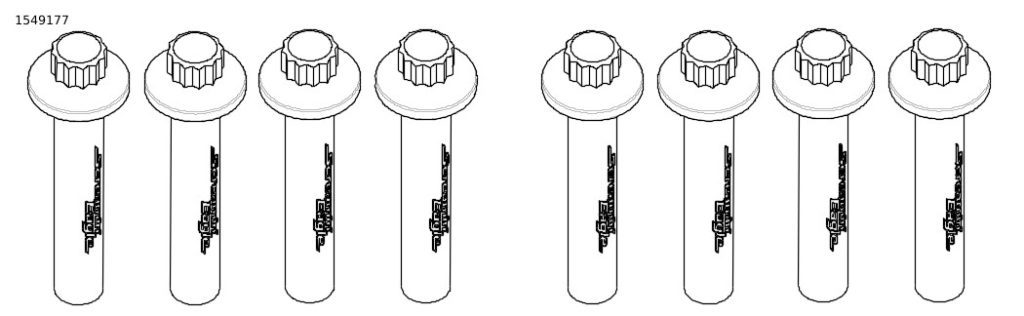

Cylinder Head Bolts	42–44	Tighten in crisscross pattern
Primary Cover Bolts	108 in-lbs (9 ft-lbs)	Avoid overtightening
Clutch Hub Nut	70–80	Left-hand thread
Compensator Nut	150–165	Requires locking compound

Transmission & Drive Torque Specs

Component	Torque Spec (ft-lbs)	Notes
Transmission Drain Plug	14–21	Use new O-ring
Transmission Side Cover Bolts	84–108 in-lbs (7–9 ft-lbs)	Tighten evenly
Drive Pulley Nut	135–165	Apply thread locker
Rear Axle Nut (Softail/Touring)	95–105	Check alignment before torque

Wheels & Suspension Torque Specs

Component	Torque Spec (ft-lbs)	Notes
Front Axle Nut	50–55	Verify fork alignment
Rear Axle Nut	95–105	Check belt/chain alignment
Brake Caliper Mounting Bolts	25–28	Use blue Loctite
Handlebar Clamp Bolts	12–16	Tighten evenly
Triple Tree Pinch Bolts	20–27	Do not overtighten

Touring Models (Specific Torque Highlights)

Component	Torque Spec (ft-lbs)	Notes
Front Engine Mount Bolts	40–45	Check rubber mount wear
Rear Swingarm Pivot	45–50	Verify free movement
Touring Saddlebag Mounts	12–16	Prevent rattling

Softail Models (Specific Torque Highlights)

Component	Torque Spec (ft-lbs)	Notes
Swingarm Pivot Bolt	80–85	Grease bearings
Rear Shock Bolts	40–45	Tighten both sides evenly
Primary Chain Adjuster	21–27	Adjust before torque

Sportster Models (Specific Torque Highlights)

Component	Torque Spec (ft-lbs)	Notes
Rear Axle Nut	50–55	Check wheel alignment
Front Axle Nut	40–45	Verify rotor clearance
Rocker Box Bolts	15–18	Use cross-pattern torque

Things You Should Know About Harley Torque Specs

• Use Correct Tools: Always use a quality torque wrench calibrated in ft-lbs or in-lbs.
• Apply Thread Locker: Blue Loctite is often recommended for bolts prone to vibration.
• Follow Tightening Sequences: Especially on cylinder heads and primary covers.
• Recheck Torque: After the first few rides post-service, double-check critical fasteners.

How to Torque Bolts on a Harley Davidson

1. Clean Threads – Remove dirt, oil, and old thread locker.
2. Lubricate if Needed – Some bolts require light oil or grease (check manual).
3. Hand Start Bolts – Always start threading by hand to avoid cross-threading.
4. Use Torque Wrench – Tighten slowly until wrench clicks at the specified torque.
5. Follow Sequence – On multi-bolt components, tighten in crisscross or spiral pattern.
6. Verify After Riding – Inspect after 50–100 miles to ensure nothing loosened.

Final Thoughts

The Harley Davidson Torque Specs Chart is a must-have for riders who service their own bikes. Correct torque ensures safety, performance, and longevity across every Harley model.

Whether you ride a Touring, Softail, Sportster, or Dyna, these torque specs help keep your motorcycle secure and road-ready.
